IEC62262 Standard IK01-IK10 Impact Testing Machine with 0.14J～50J Impact Energy Range

Product Categories
Dongguan Youbi Test Equipment Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IEC62262 Standard IK01-IK10 Impact Testing Machine with 0.14J～50J Impact Energy Range

  • 1
  • 2
  • 3

Certification : CE,ISO

Applications : Traffic lights, consumer electronics ,outdoor signage, and etc.

Model Number : UP-3012

Model NO. : UP-3012

MOQ : 1 Unit

Delivery Time : 5-15 work days

Applicable IK Grade : IK01-IK10 (IK11 optional)

Payment Terms : T/T; D/T; Western Union; Paypal

Product name : Impact Test Equipment

Price : Negotiable

Height Accuracy : ±1mm

Supply Ability : 30 Unit/month

Impact Energy Range : 0.14J～50J

Place of Origin : China

Energy Accuracy : ±2%

Brand Name : YOUBI

Service Support : OEM ODM

Packaging Details : Professional Export Packing

Contact Now

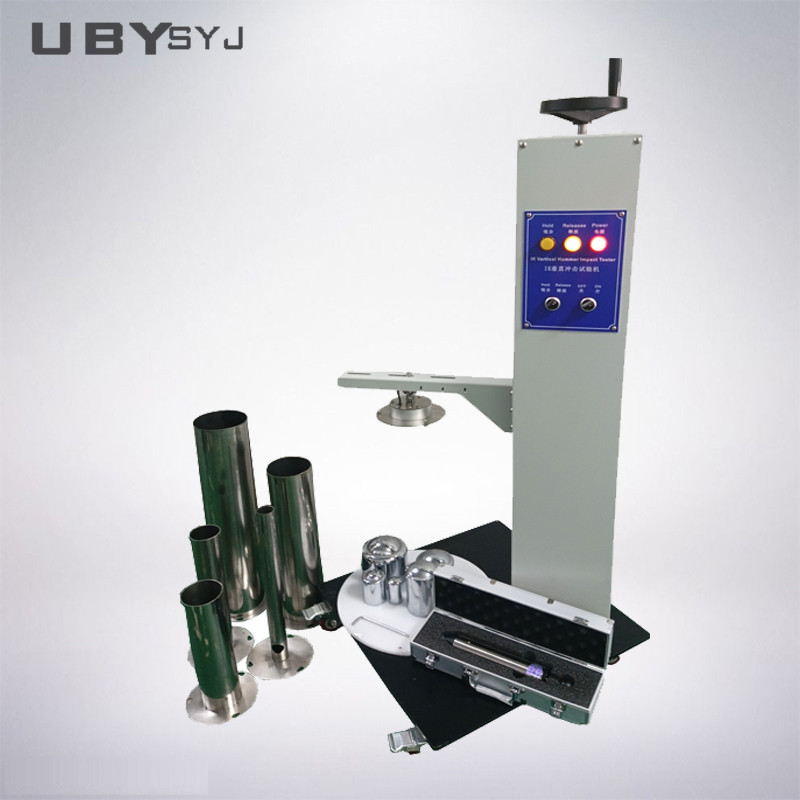

UP-3012 IEC62262 Standard IK01-IK10 Impact Tester Electrical Product Shell Impact Resistance Testing Machine
Product Overview

The IK Impact Tester is designed to determine the IK protection rating of electrical and electronic product enclosures. Utilizing standard pendulum and vertical free-fall impact principles, this machine delivers precise and controllable impact energy to evaluate product shell toughness, structural strength, and anti-damage capability.

  • Covers full-range IK grade testing from low to high energy impact
  • Features accurate height calibration and stable impact output
  • Provides excellent test repeatability for reliable results
Compliance Standards
  • IEC 62262 - Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)
  • IEC 60068-2-75 - Environmental testing - Part 2-75: Tests - Test Eh: Hammer impact tests
  • EN 50102 - Degrees of protection against external mechanical impacts for electrical equipment enclosures
  • GB/T 2423.55 - Environmental testing for electronic products - Test methods for mechanical impact resistance
Applications

Widely applied for product certification, quality inspection, and structural optimization, this tester provides authoritative and reliable test data for industrial electrical, lighting, and consumer electronic products. Suitable for IK rating verification and mechanical impact resistance testing across multiple industries.

Primary Industries: Lighting, Electrical, Consumer Electronics, Factory Laboratories, Third-party Certification Institutions
Technical Specifications
Item Specifications
Applicable IK Grade IK01-IK10 (IK11 optional)
Impact Energy Range 0.14J～50J
Impact Mode Pendulum impact & vertical free fall impact
Height Accuracy ±1mm
Energy Accuracy ±2%
Striking Element Standard steel hammer & plastic hammer for different IK levels
Impact Times Setting 1-99 times adjustable, continuous impact available
Operation Mode Manual release / automatic release optional
Machine Feature High stability, low noise, easy calibration and maintenance
Power Supply AC220V 50Hz
IEC62262 Standard IK01-IK10 Impact Testing Machine with 0.14J～50J Impact Energy Range IEC62262 Standard IK01-IK10 Impact Testing Machine with 0.14J～50J Impact Energy Range
Our Service Commitment

We provide comprehensive Consultative Selling services throughout the entire business process:

  1. Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  2. Specifications Customization: Create detailed drawings, provide reference photos, and confirm final solutions and pricing
  3. Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  4. Installation and After-sales: Provide field installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine includes a 12-month warranty after shipment with free maintenance. We extend to 14 months considering sea transportation. For technical support, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.
What about the delivery term?
Standard machines in stock: 3-7 working days; No stock: 15-20 working days after payment; Urgent requirements receive special arrangement.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services including logo placement.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. On-site installation assistance is available when necessary.
