Compliant With ASTM D4966 DIN53863 ISO 20344 ISO12947 Four Station Martindale Abrasion And Pilling Tester

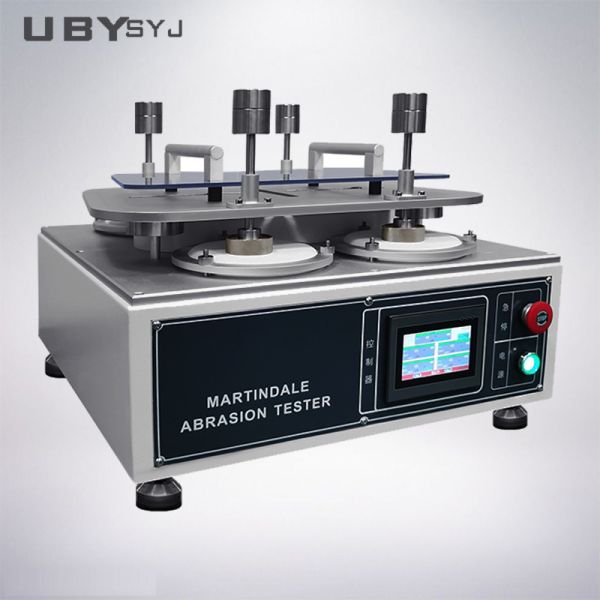

UP-1006 4 Station Martindale Abrasion And Pilling Tester
The UP-1006 4 Station Martindale abrasion tester is precision testing equipment designed to evaluate the abrasion resistance and pilling performance of fabrics, leather, and other materials. Featuring four independent testing stations, this instrument significantly enhances detection efficiency, making it ideal for laboratories and quality control departments requiring batch testing or multi-standard comparison.
Applications
This instrument is essential in textile testing for various materials including:
- Woven fabrics
- Knitted fabrics
- Wool fabrics
- Non-woven fabrics
- Furniture decorative fabrics
- Bedding
- Carpets
Standards Compliance: ISO 12947, ISO 12945-2, GB/T 21196 series, GB/T 4802.2, ASTM D4966, ASTM D4970
Technical Specifications
| Item |
Specification |
| Test station |
4 stations |
| Test speed |
External wheel: 47.5±2.5r/min, inner wheel: 44.5±2.4r/min |
| Mass of Test Specimen Carrier assembly (g) |
595 ± 10g / 795 ± 10g |
| Weight mass |
2.5±0.1kg, diameter 120±10mm |
| Controller |
PLC touch screen control |
| Volume (WxDxH) |
48x50x36cm |
| Weight (approx.) |
50Kg |
| Power supply |
1∮ AC 220V 3A |
Our Service Commitment
We provide comprehensive consultative selling services throughout the entire business process:
Customer Inquiry Process
Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.
Specifications Customization
Create detailed drawings for custom requirements, provide reference photos, and finalize solutions with confirmed pricing.
Production and Delivery
Manufacture according to confirmed requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery.
Installation and After-Sales
Provide field installation support and comprehensive after-sales service to ensure optimal performance.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months consideration for sea transportation. For technical issues, contact us via email or phone - we provide solutions within 24-48 hours after problem confirmation.
What about the delivery term?
Standard machines with available stock: 3-7 working days. Without stock: 15-20 working days after payment. Urgent requirements receive special arrangement priority.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including logo placement on equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
